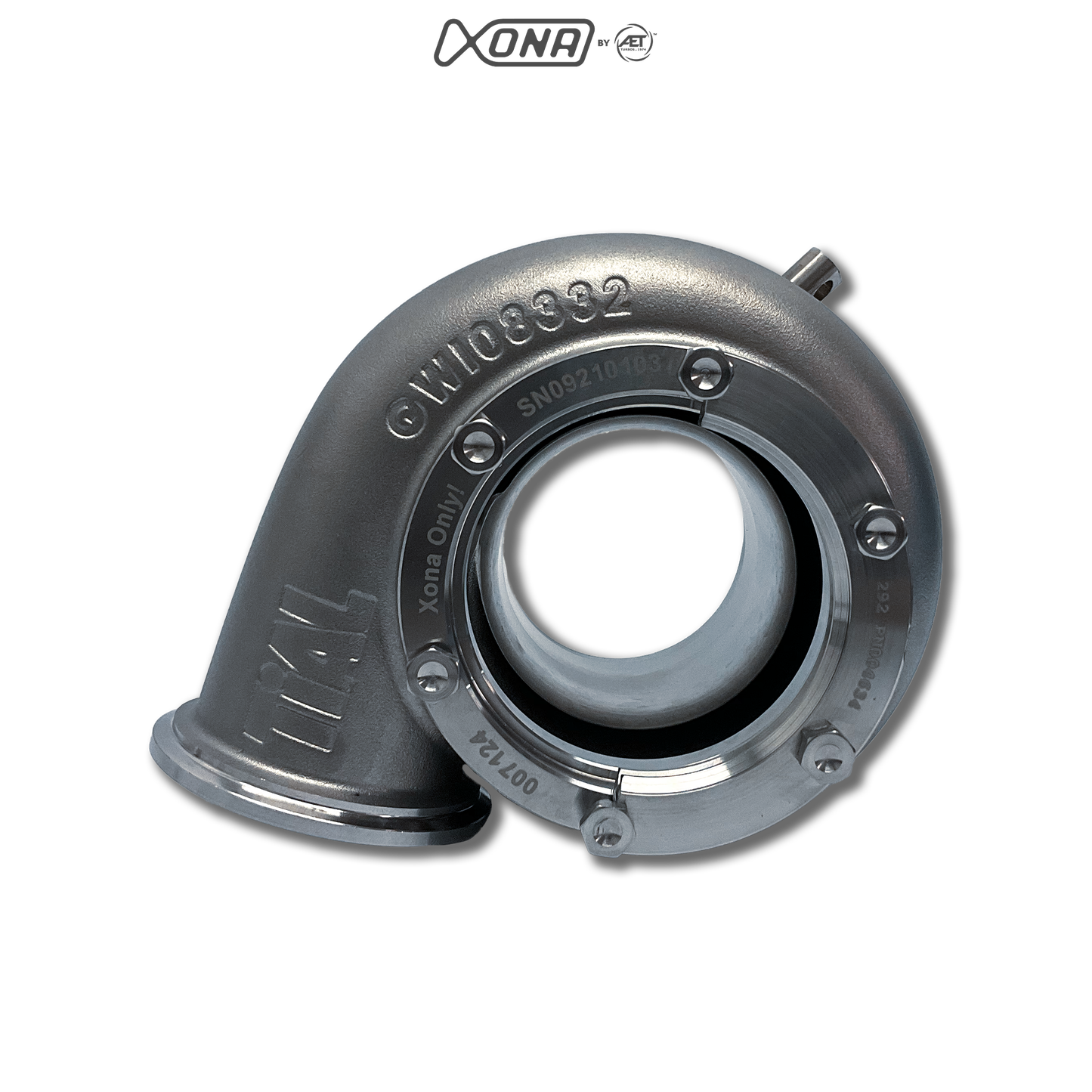

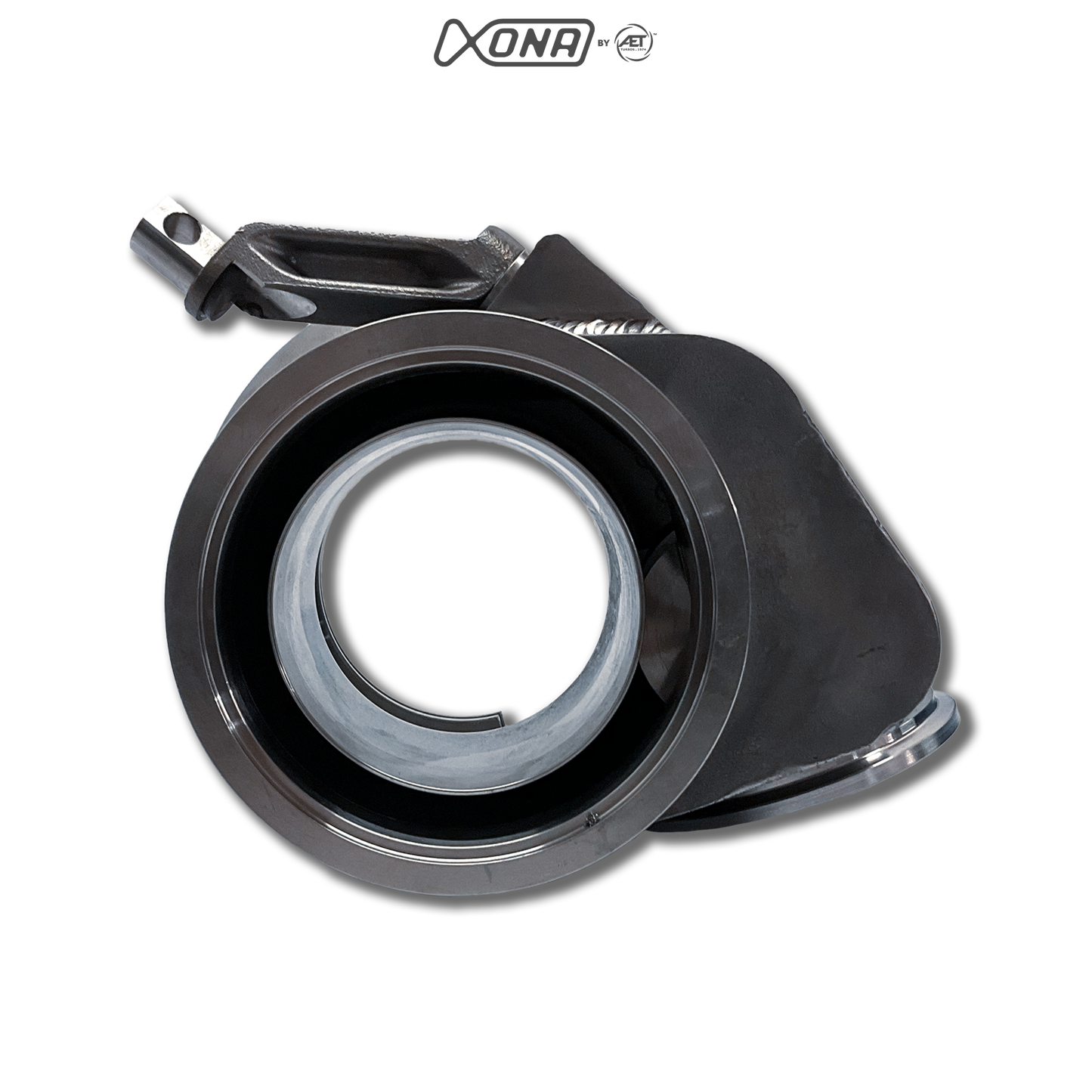

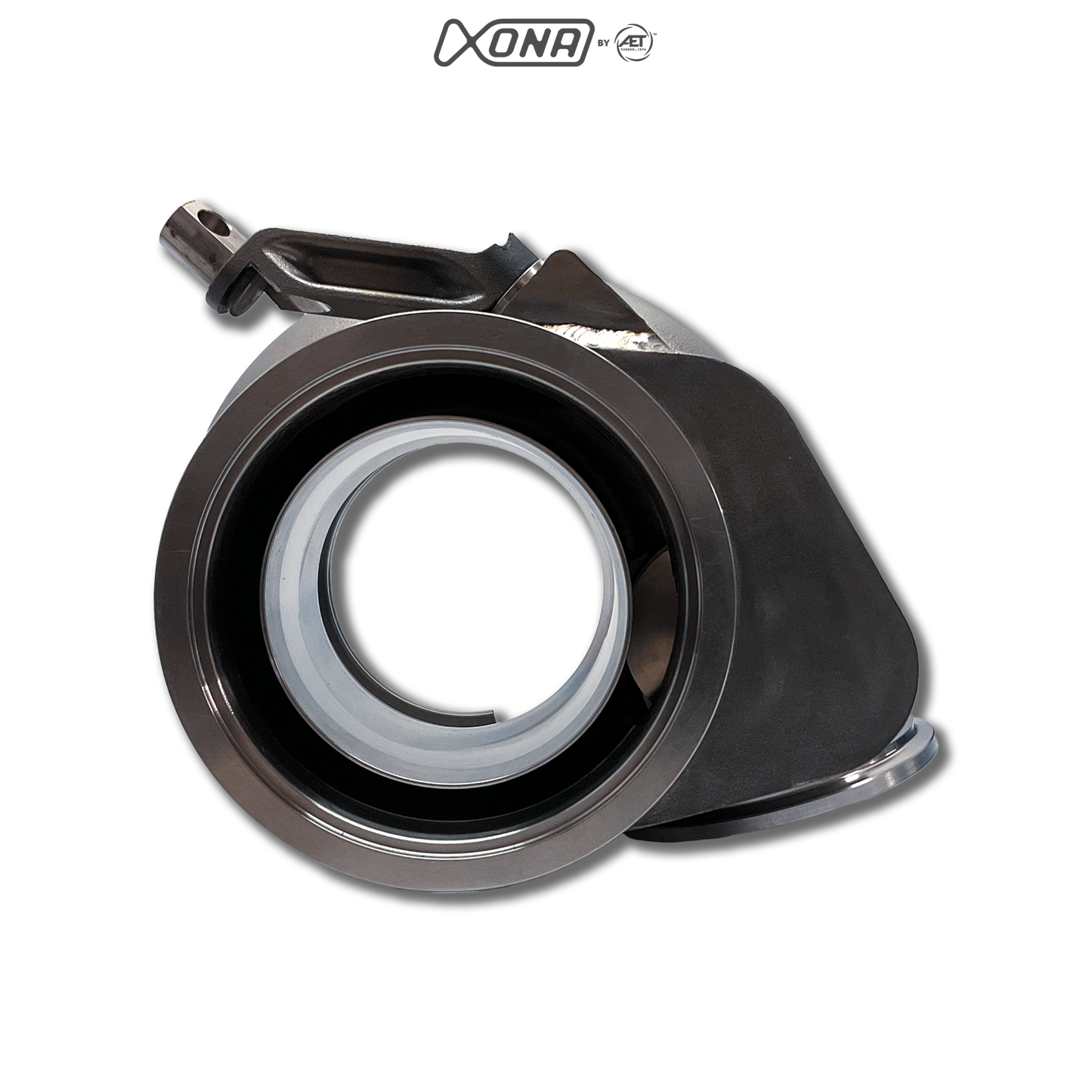

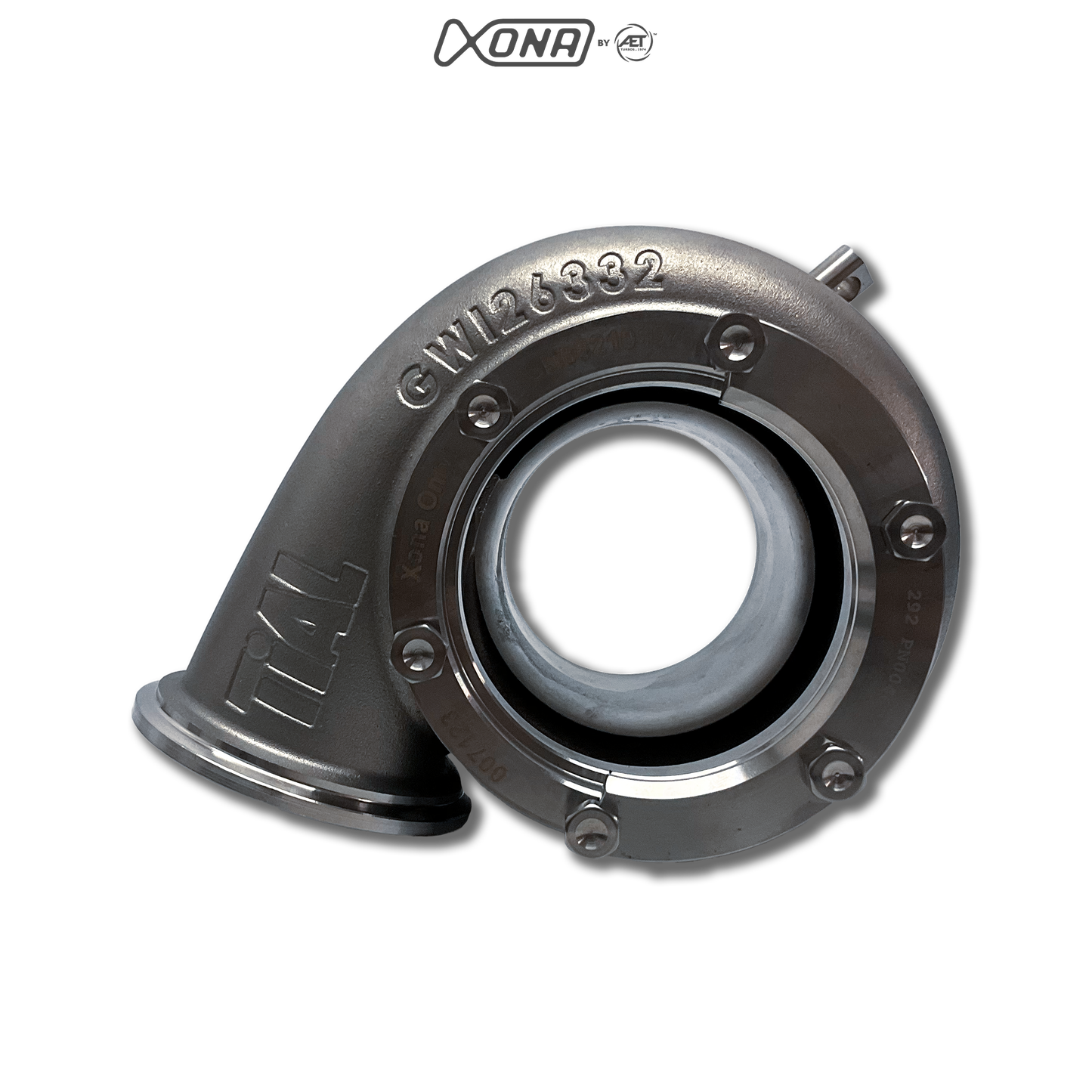

XR-64S SS V-Band IWG, Turbine Housing
IWG housings are offered in 0.62 and 0.80A/R volutes
These are designed for turbine inducers from 50-73mm.
IWG housings are currently offered in standard-rotation configuration only.
These housings have the same inlet v-flange size and placement as all V25V through V35V housings, but use a larger outlet flange with a greater axial distance and location.
IWG housings use the TiAL Sport patented WG flow path shroud design.
IWG housings use a 42mm valve and 38mm port.
The lever position and length are optimised by using the TiALSport MVI 2.5 actuator and patented actuator bracket design.
A water-cooled version (IWG/H2O) is available for marine applications.
