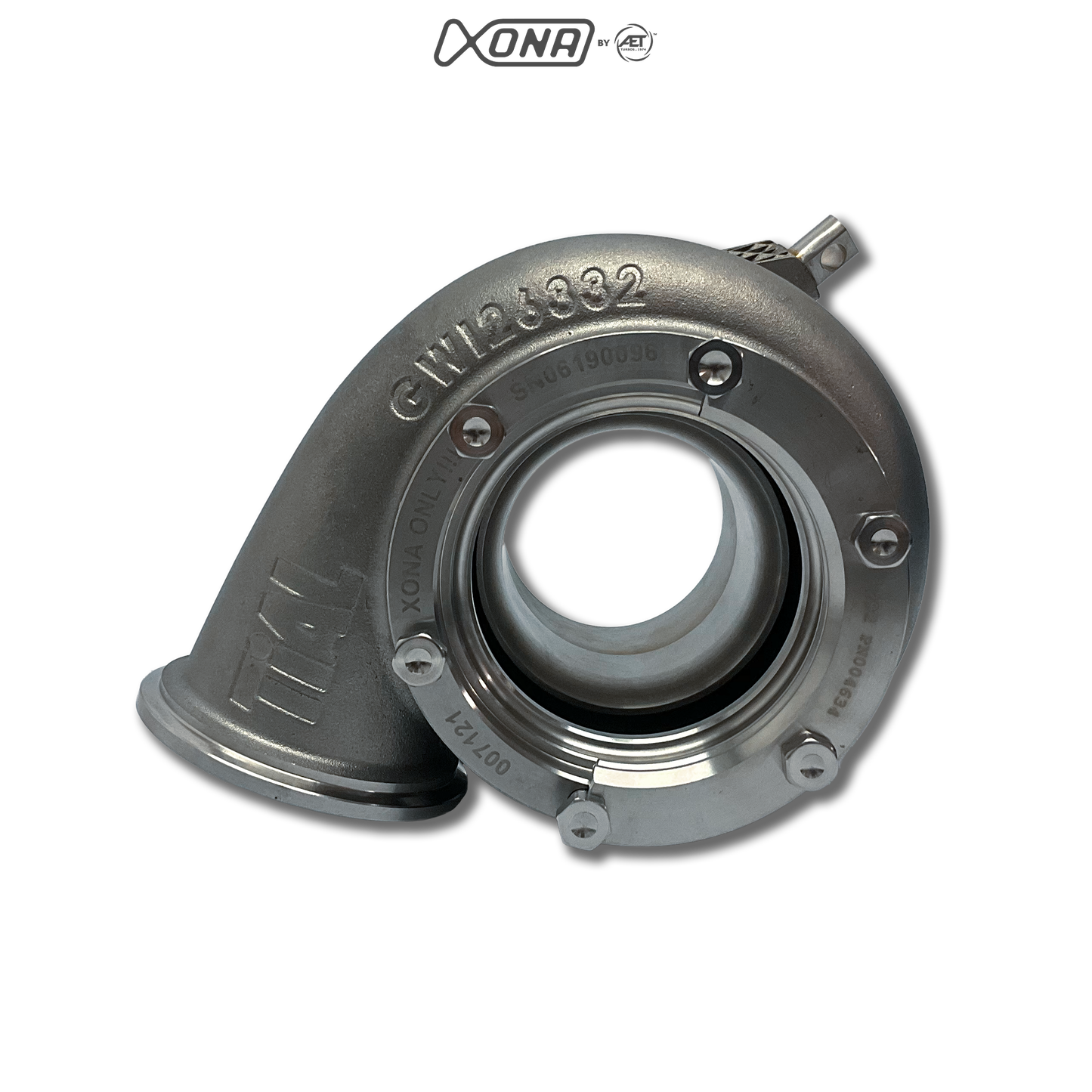

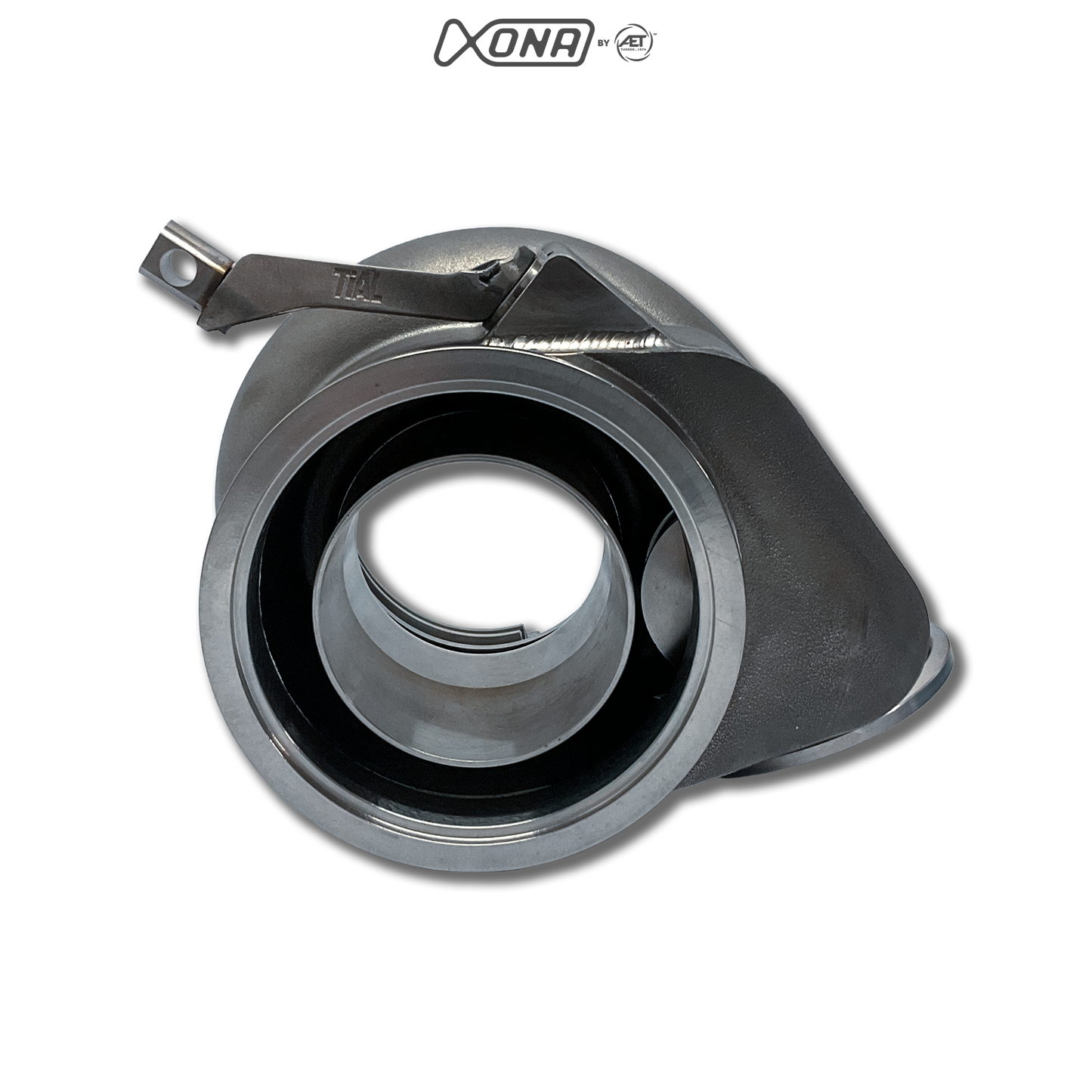

XR-57S SS V-Band IWG, Turbine Housing

by Xona
SKU 007121
Original price £628.47 GB - Original price £628.47 GB
Original price
£628.47 GB
£628.47 GB - £628.47 GB
Current price £628.47 GB
CONTACT US

Please ensure this is the correct turbo for your vehicle, if you are unsure in any way please call our support team on 01924 894171.

Delivery

Subject to availability, products can often be delivered to you next-day.

IWG housings are offered in 0.62 and 0.80A/R volutes

These are designed for turbine inducers from 50-73mm.

IWG housings are currently offered in standard-rotation configuration only.

These housings have the same inlet v-flange size and placement as all V25V through V35V housings, but use a larger outlet flange with a greater axial distance and location.

IWG housings use the TiAL Sport patented WG flow path shroud design.

IWG housings use a 42mm valve and 38mm port.

The lever position and length are optimised by using the TiALSport MVI 2.5 actuator and patented actuator bracket design.

A water-cooled version (IWG/H2O) is available for marine applications.
