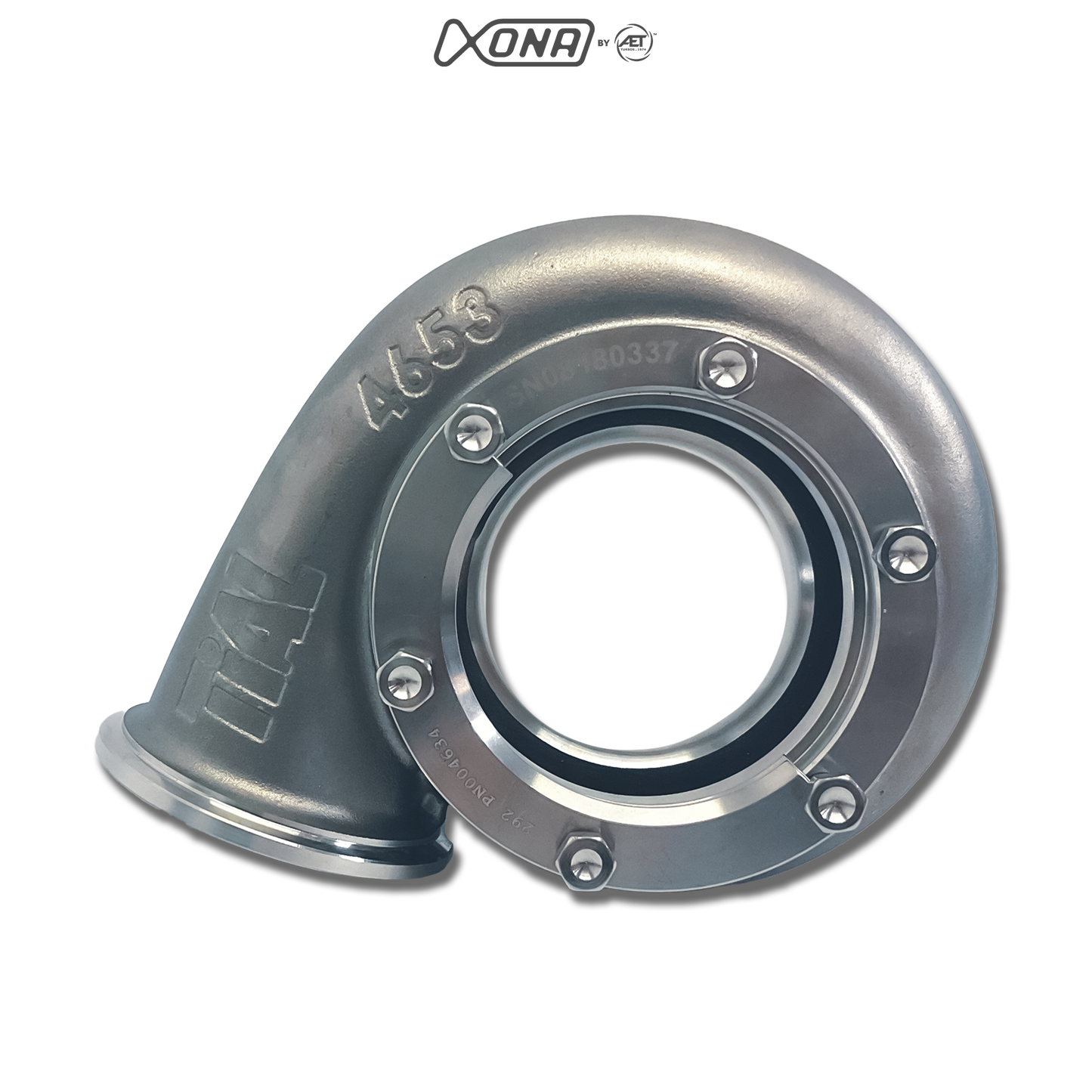

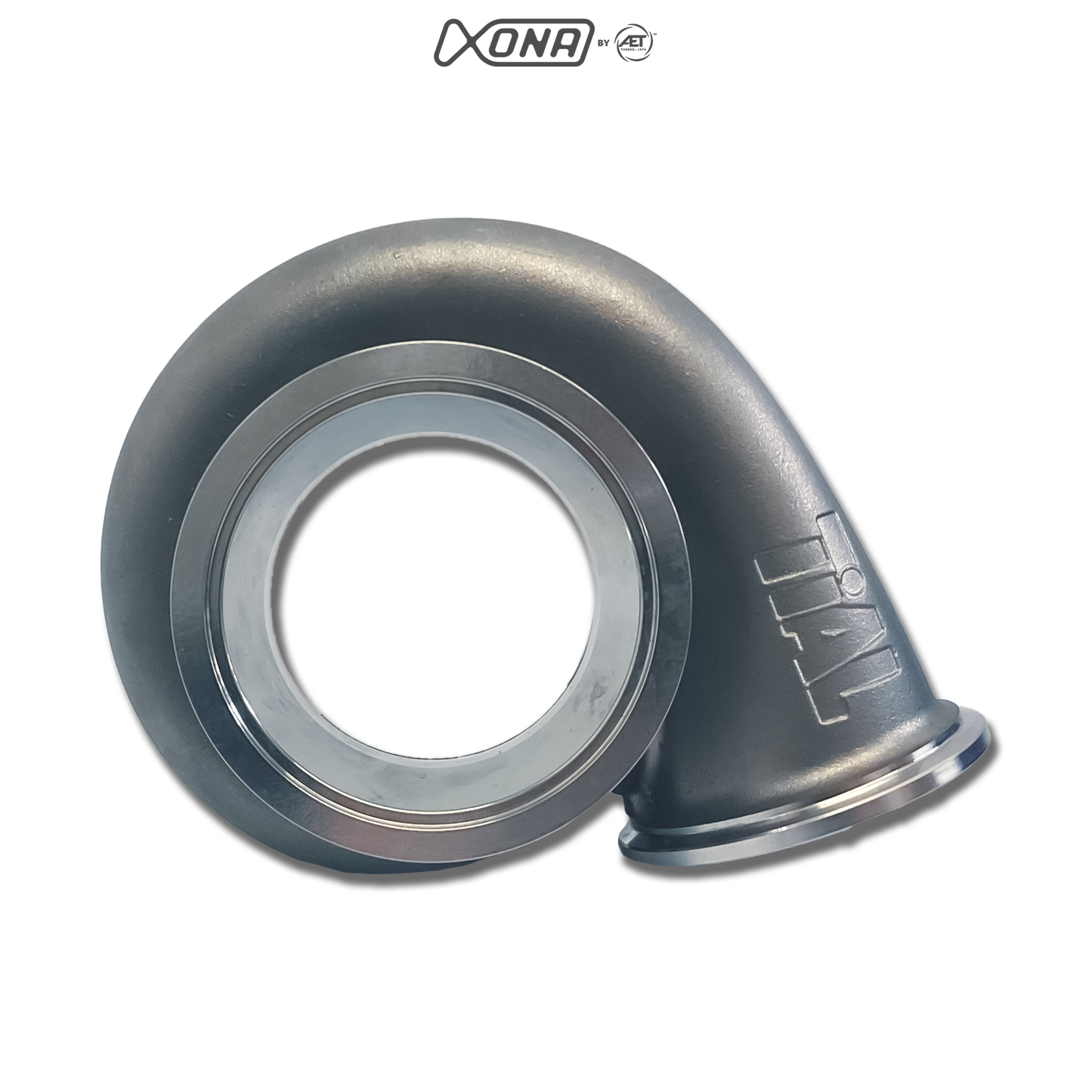

GT35 Stainless Steel Housing - TiAL Sport

Lightweight stainless steen turbine housing for the GT/X 35 series turbochargers. Compatible with the 68mm 84 trim turbine wheel.

SPECIFICATIONS

• Typically lighter weight than a corresponding iron housing of the same A/R
• Investment cast stainless steel for a beautiful, smooth interior and exterior
• Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
• Three A/R options
• Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
• Better heat retention than cast iron
• Inconel bolts provided for vibration and stretching resistance in extreme applications
• Locking tabs included for high vibration applications
• Pivoting of the turbo 360* possible

Included With Every Housing

• Turbine Housing
• Three Moon Tabs
• Six Inconel Bolts
• Three Locking Tabs

TiAL V-Band Clamp & Flange System

• TiAL V-Band flanges are manufactured in house
• GTVFL3.0 - Inlet Flange
• VC300 - Inlet Clamp
• VBF300M - Outlet Flange
• VC355 - Outlet Clamp
